Model: UBH860 – Ultra Hoist, Traction Drive
Load Capacity: 860 lbs
Carriage Size: 45 5/8” x 60”
Carriage constructed from aluminum tubing with non-skid aluminum decking
Carriage doors: 32” wide
Powder-coated carriage finish in 8 colors:
Spartan Bronze, Charlie Brown, Medium Gloss Black, Hunter Green, Designer Beige, Arctic Silver, Sky White, Statuary Bronze
(Custom colors available at additional cost)
Entry/exit options:
Walk-on/walk-off
Right or left side entry/exit
Dual door (right and left entry/exit)

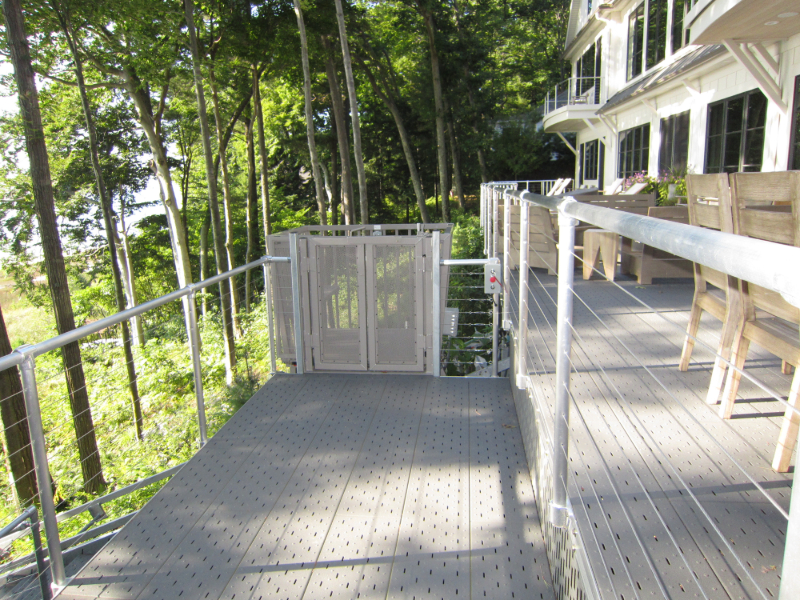

Optional landing gates: 40½” long x 42” high with 32” wide door, aluminum tubing and perforated aluminum
Landing gate color options match carriage colors (custom colors available)
Carriage-mounted, wireless, and remote controls are standard
Non-skid aluminum decking enhances safety
Flexible entry/exit configurations to match property layout
Standard remote and wireless control operation
Custom color options for visual integration
Framework: Galvanized steel posts (3½” x 3½” x 3/16”), cemented into the ground
Track System:
2” x 3” x 11-gauge galvanized or painted rectangle tubing
Outside track width: 41½”
Bolted together on-site using Grade 8 bolts
Supported every 10 feet by 2” WT 40 galvanized pipe, cemented into the ground
Adjustable track system
Cable: 5/16” galvanized aircraft cable with 9,800 lb. breaking strength

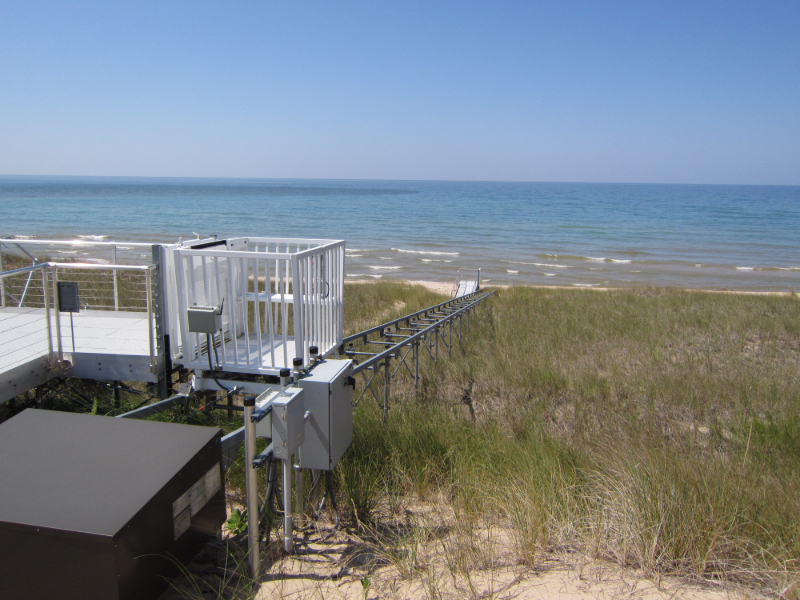

Power Unit:
Elevator Control Panel UL-listed (E473065), ANSI/ASME compliant, NEMA 4 waterproof enclosure
5 HP AC Drive motor for soft starts and stops
2” Pillow Block bearing and 2” solid steel axle
Traction drive system designed for hills over 130 feet
Equipped with Slack Cable Control
Travel Speed: 70 feet per minute

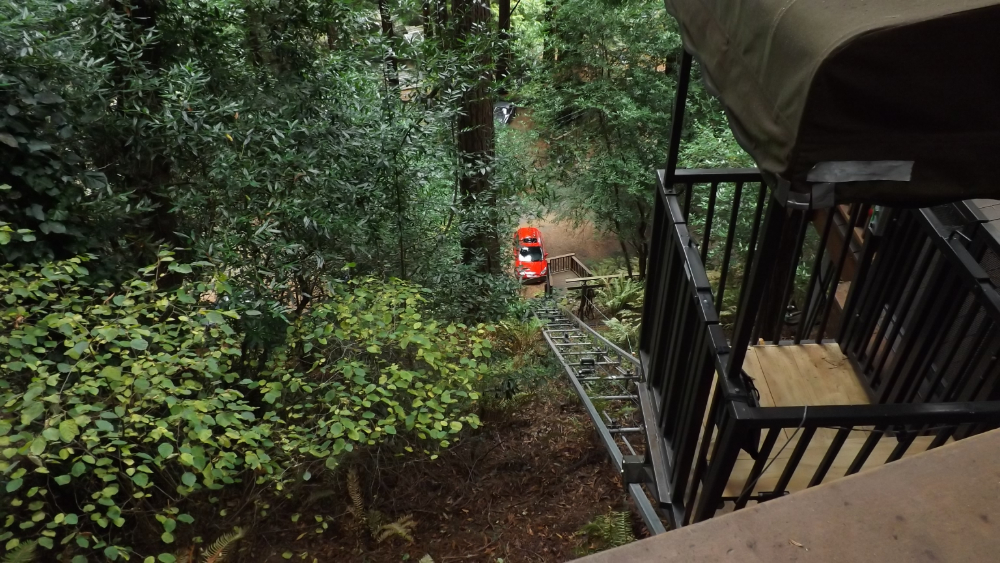

The UBH860 – Ultra Hoist is installed by Bucky Lift using galvanized steel posts cemented into the ground to support the power unit. The adjustable track system is bolted together on-site with Grade 8 bolts and supported every 10 feet using galvanized pipe driven into the ground—ensuring a secure and long-lasting hillside setup.
Over-speed governor automatically engages the safety brake (stationary cable brake with spring dampener or track brake, depending on code/system requirements)
Slack cable safety system automatically shuts the system down
Spring buffers compliant with ASME A17.1-2016, Section 5.4.10.3
Optional landing gates feature interlocks compliant with ASME A17.1-2016, Section 5.4.2.2
Top controls: up, down, E-stop, and lock-out key
Bottom controls: up, down, and E-stop
Marine Innovations Residential Incline Elevator Warranty
Marine Innovations, Inc. offers a limited warranty on their residential incline elevators to the original owner. Coverage includes:
1 Year on all electrical parts and components
1 Year on the drive and brake cable
3 Years on all non-structural components (gearbox, motor, brakes, etc.)
15 Years on all structural components
Bucky Lift offers scheduled maintenance services for the UBH860 – Ultra Hoist incline elevator. Routine inspections help ensure continued safe and efficient operation.
Contact Bucky Lift to schedule service or learn more about maintenance options for your UBH860 system.
