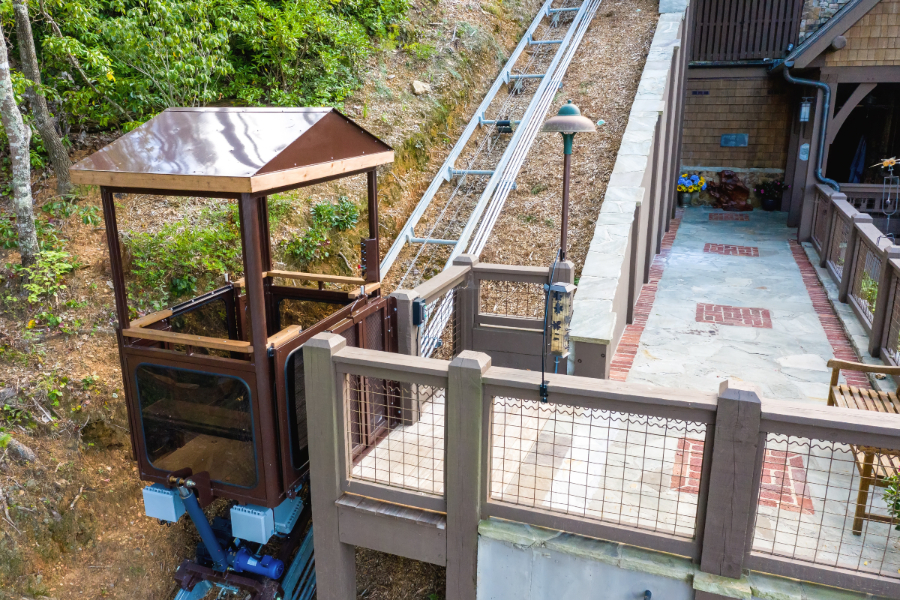

Model: UBH1200 – Ultra Hoist, Traction Drive
Load Capacity: 1,200 lbs
Carriage size: 47½” x 59”
Carriage constructed from aluminum tubing with non-skid aluminum decking
Carriage powder-coated in 4 color options:
Metallic Silver, Charlie Brown, Spartan Bronze, Hunter Green (custom colors available)
Entry/exit options:
Walk-on/walk-off
Right or left side entry/exit
Walk-on/side exit
Wheelchair accessible
Optional landing gates: 48” long x 42” high, built from aluminum tubing and perforated aluminum
Landing gates powder-coated in the same 4 colors (custom colors also available)
Carriage-mounted, wireless, and remote controls (standard)
Higher weight capacity for larger passenger/cargo loads
Flexible entry configurations for accessibility and layout customization
Standard non-skid decking for rider safety
Durable, weather-resistant materials and finishes
Standard wireless and remote operational control
Framework: Galvanized steel posts (3½” x 3½” x 3/16”), cemented into the ground
Rail System:
5” x 2” x 11-gauge galvanized or painted rectangle tubing
Outside rail width: 41½”
Bolted together with Grade 8 bolts
Supported every 10 feet with 2” WT 40 galvanized pipe driven into the ground
Adjustable rail system
Cable: 5/16” galvanized aircraft cable with 9,800 lb. breaking strength
Power Unit:
Elevator Control Panel UL-listed (E473065), ANSI/ASME compliant, NEMA 4 waterproof enclosure
5 HP AC Drive motor for soft starts and stops
2½” Pillow Block bearing and 3” solid steel axle
Traction drive system designed for hills over 130 feet
Equipped with Slack Cable Control
Travel Speed: 70 feet per minute
The UBH1200 – Ultra Hoist is professionally installed by Bucky Lift. Galvanized steel posts are cemented into the ground to support the power unit, while the adjustable rail system is assembled on-site with Grade 8 bolts and supported every 10 feet with galvanized pipe driven into the ground to ensure stability on steep grades.
Over-speed governor activates a safety brake (stationary cable brake with spring dampener or track brake, depending on code/system requirements)
Slack cable safety system shuts the system down automatically
Spring buffers compliant with ASME A17.1-2016, Section 5.4.10
Optional landing gate interlocks compliant with ASME A17.1-2016, Section 5.4
Top controls: up, down, E-stop, and lock-out key
Bottom controls: up, down, and E-stop
Marine Innovations Residential Incline Elevator Warranty
Marine Innovations, Inc. offers a limited warranty on their residential incline elevators to the original owner. Coverage includes:
1 Year on all electrical parts and components
1 Year on the drive and brake cable
3 Years on all non-structural components (gearbox, motor, brakes, etc.)
15 Years on all structural components
Bucky Lift provides scheduled maintenance services for the UBH1200 – Ultra Hoist incline elevator. Routine service helps ensure reliable operation and continued safety.
Contact Bucky Lift to schedule a maintenance appointment or inquire about ongoing service plans for your UBH1200 system.
Starting from
Installation Included
