Battery powered – operates during power outages
Travels up to 50 feet
Capacity: 200 or 275 lbs
Rack and pinion drive system – no cables or pulleys
Standard 120V outlet – no special wiring required
Shaft-required but no machine room or pit needed
Pre-installed car and drive system for faster setup
RF wireless hall stations and optional key switch
LED diagnostic system
Car sizes:
– 20″ W x 20″ D x 30″ H (200 lbs)
– 24″ W x 24″ D x 30″ H (200 lbs)
– 30″ W x 30″ D x 36″ H (275 lbs)
Bi-parting vertical sliding car gate
Powder-coated finish (custom colors available)
Overspeed governor for added protection
ETL Listed
Simplifies transport of groceries, laundry, firewood, packages, and more
Saves time and reduces strain from carrying items between floors
Clean, quiet, and compact solution for multi-story homes
Easy installation and low electrical requirements reduce project costs
Custom sizes and finishes available to match home aesthetics
Wireless controls eliminate the need for complex wiring
Max Travel: Up to 50 feet
Max Stops: 4
Weight Capacity:
– 200 lbs (20″x20″ or 24″x24″)
– 275 lbs (30″x30″)
Drive System: Rack and pinion
Speed: 18–20 feet per minute
Power: Two 12V 5AH batteries with continuous charge trailing wire
Electrical Requirement: 120V standard outlet
Operation Type: Automatic via RF wireless controls
Construction: Extruded aluminum track, no pulleys or cables
Finish: Powder-coated steel panels with optional stainless steel cab

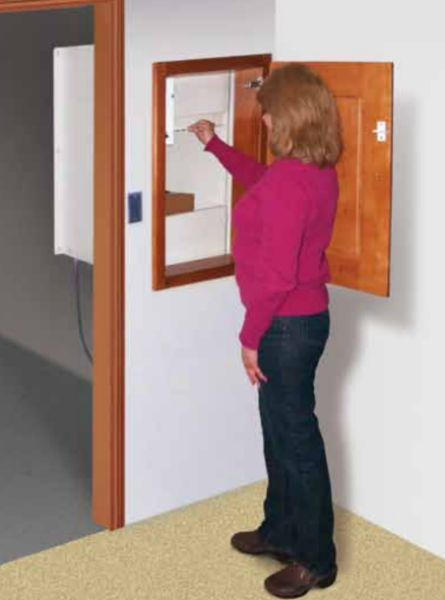

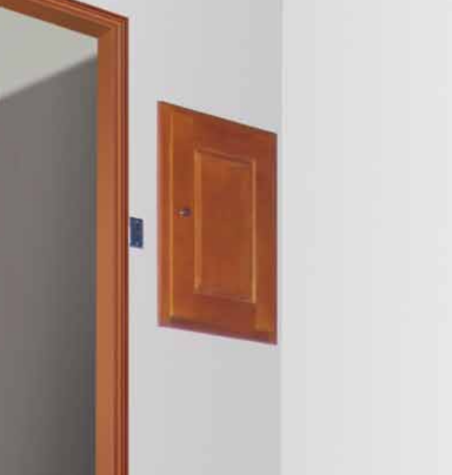

The Hide-A-Waiter Dumbwaiter is installed by Bucky Lift. This model is designed for use inside a hoistway and requires no machine room or pit. With the car and drive system pre-mounted to a 5’ section of track, installation is fast and efficient. Bucky Lift ensures a professional fit and finish, tailored to your home’s layout.
Limit switches at each stop
Final limit at top and bottom landings
Overspeed safety device
Car door switch
Machine access door switch
Residential hoistway door interlocks (monitors open/closed state)
Drive Train: 5 years
Parts: 2 years
Batteries: 1 year
Bucky Lift provides scheduled maintenance for the Hide-A-Waiter Dumbwaiter to ensure reliable, long-term performance. Preventative care helps reduce wear, avoid costly repairs, and maintain safe operation through all seasons.
Starting from
Installation Included
