Drum drive system designed for hills under 130 feet
860 lb. load capacity
Carriage size: 45 5/8” x 60”
Carriage made of aluminum tubing with non-skid aluminum decking
Door(s): 32” wide
Carriage available in 8 powder-coated colors:
Spartan Bronze, Charlie Brown, Medium Gloss Black, Hunter Green, Designer Beige, Arctic Silver, Sky White, Statuary Bronze (custom colors available at additional cost)
Entry/exit configuration options:
Walk-on/walk-off
Right or left side entry/exit
Dual door (right and left entry/exit)
Carriage-mounted, wireless, and remote controls (standard)
Optional landing gates built of aluminum tubing and perforated aluminum
Landing gate color options match carriage color options (custom colors also available)
Standard carriage-mounted, wireless, and remote controls for up, down, and emergency stop
Multiple entry/exit design options available for accessibility and layout flexibility
Powder-coated and customizable color options for aesthetic integration
Carriage floor is non-skid for added stability
Model: CBH860 – Classic Hoist, Drum Drive
Load Capacity: 860 lbs
Carriage Size: 45 5/8” x 60”
Door Width: 32”
Track System:
2” x 3” x 11-gauge galvanized or painted rectangle tubing
Outside track width: 41½”
Adjustable, bolted together using Grade 8 bolts
Supported every 10 feet with 2” WT40 galvanized pipe driven into the ground
Framework: Galvanized steel posts (3½” x 3½” x 3/16”), cemented into the ground
Cable Options:
1/4” – 7,000 lb. breaking strength
5/16” – 9,800 lb.
3/8” – 14,400 lb.
Power Unit:
Elevator Control Panel – UL-listed (E473065), ANSI/ASME compliant, NEMA 4 waterproof enclosure
AC Drive motor – 3 or 5 HP, for soft starts and stops
2” Pillow Block bearing and 2” solid steel axle
Travel Speed: 70 feet per minute

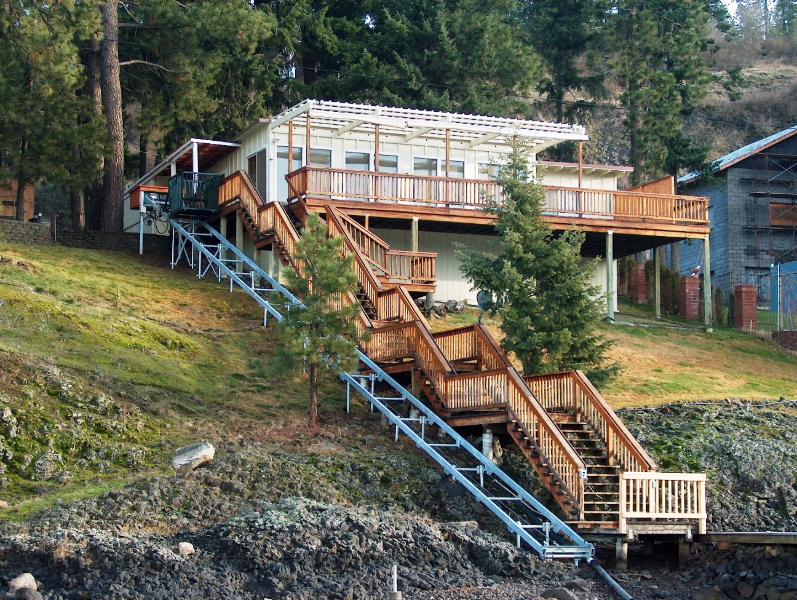

The CBH860 – Classic Hoist is installed by Bucky Lift with expert care and precision. Galvanized steel posts are cemented into the ground to support the power unit. The adjustable track system is assembled on-site using Grade 8 bolts and supported every 10 feet with galvanized pipe driven into the ground, ensuring a stable and durable setup tailored to your property’s hillside.
Over-speed governor engages safety brake (stationary cable brake with spring dampener or track brake, depending on system/code requirements)
Slack cable safety system automatically shuts down the system
Spring buffers compliant with ASME A17.1-2016, Section 5.4.10.3
Optional landing gate interlocks compliant with ASME A17.1-2016, Section 5.4.2.2
E-stop included in top and bottom controls
Lock-out key feature in top controls
Marine Innovations Residential Incline Elevator Warranty
Marine Innovations, Inc. offers a limited warranty on their residential incline elevators to the original owner. Coverage includes:
1 Year on all electrical parts and components
1 Year on the drive and brake cable
3 Years on all non-structural components (gearbox, motor, brakes, etc.)
15 Years on all structural components
Bucky Lift offers scheduled maintenance services for the CBH860 – Classic Hoist incline elevator. Regular inspections and upkeep help ensure long-term performance and safe operation.
Contact Bucky Lift to learn more about available service plans or to schedule maintenance for your CBH860 system.
