Model: CBH1200 – Classic Hoist, Drum Drive
Load Capacity: 1,200 lbs
Carriage size: 47½” x 51½”
Carriage constructed from aluminum tubing with non-skid aluminum decking
Powder-coated carriage finish available in 4 standard colors:
Metallic Silver, Charlie Brown, Spartan Bronze, Hunter Green
(Custom colors also available)
Entry/exit configuration options include:
Walk-on/walk-off
Right or left side entry/exit
Walk-on/side exit
Wheelchair accessible
Optional landing gates: 48” long x 42” high, with interlocks compliant with ASME A17.1-2016, Section 5.4.2.2
Landing gates constructed from aluminum tubing and perforated aluminum
Landing gate colors: Metallic Silver, Hunter Green, Charlie Brown, Spartan Bronze (custom colors available)
Carriage-mounted, wireless, and remote controls are standard
Custom carriage color and design options
Multiple entry/exit configurations for increased accessibility
Standard non-skid flooring for added stability
Wireless, remote, and onboard controls included
Track System:
5” x 2” x 11-gauge galvanized or painted rectangle tubing
Outside rail width: 41½”
Assembled on-site using Grade 8 bolts
Supported every 10 feet with 2” WT 40 high-strength galvanized pipe driven into the ground
Adjustable track system
Framework: Galvanized steel posts (3½” x 3½” x 3/16”), cemented into the ground
Cable: 5/16” galvanized aircraft cable with 9,800 lb. breaking strength
Power Unit:
Elevator Control Panel UL-listed (E473065), ANSI/ASME compliant, NEMA 4 waterproof enclosure
5 HP AC Drive motor for soft starts and stops
2” Pillow Block bearing and 2” solid steel axle
Drum drive system designed for hills under 130 feet
Equipped with Slack Cable Control
Travel Speed: 70 feet per minute

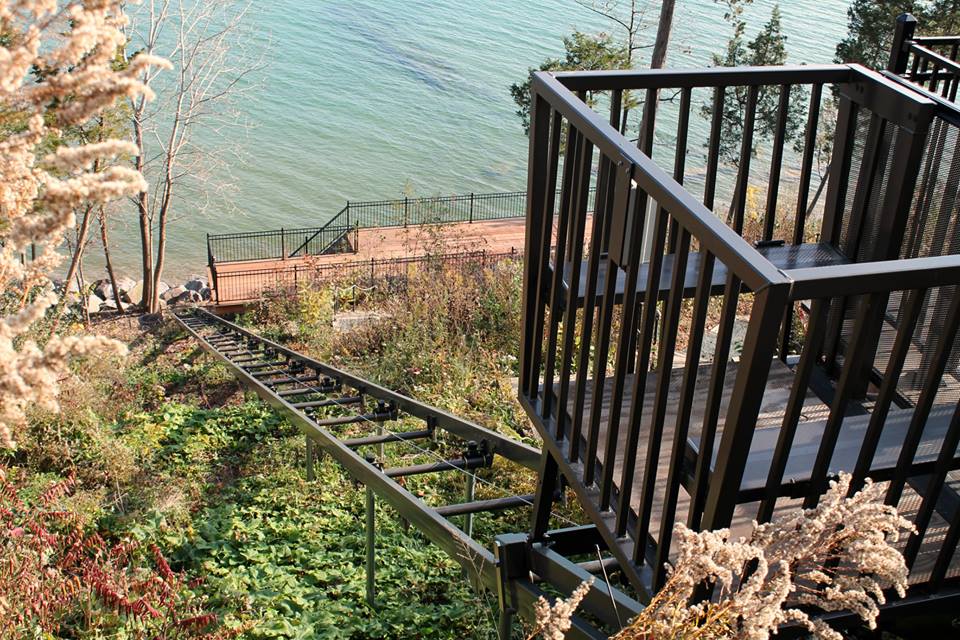

The CBH1200 – Classic Hoist is installed by Bucky Lift with galvanized steel posts cemented into the ground to support the power unit. The adjustable rail system is assembled on-site using Grade 8 bolts and reinforced every 10 feet with galvanized pipe driven into the ground for a secure and reliable fit on sloped terrain.
Over-speed governor automatically engages a safety brake (stationary cable brake with spring dampener or track brake, depending on code/system requirements)
Slack cable safety system automatically shuts down the system
Spring buffers compliant with ASME A17.1-2016, Section 5.4.10.3
Optional landing gates include interlocks compliant with ASME A17.1-2016, Section 5.4.2.2
Top controls include: up, down, E-stop, lock-out key
Bottom controls include: up, down, E-stop
Marine Innovations Residential Incline Elevator Warranty
Marine Innovations, Inc. offers a limited warranty on their residential incline elevators to the original owner. Coverage includes:
1 Year on all electrical parts and components
1 Year on the drive and brake cable
3 Years on all non-structural components (gearbox, motor, brakes, etc.)
15 Years on all structural components
Bucky Lift offers scheduled maintenance services for the CBH1200 – Classic Hoist incline elevator. Routine inspections and service help maintain performance and safety over time.
Contact Bucky Lift to learn more or to schedule maintenance for your CBH1200 system.
